    Austenitic Capillary Stainless Steel Welded Pipe Ss AL6XN

    UNS N08367 AL6XN BA Super Austenitic Stainless Steel Welded Pipe / Seamless Capillary Tubing


    AL6XN Tube (UNS N08367) is a “super-austenitic” low carbon stainless steel. AL6XN Seamless Pipe has 6.3% molybdenum. In comparison you will find that Al6xn Seamless Pipe is 50% stronger than stainless steel tube. AL6XN High-Pressure Tube is stable to 1000°F. Al6xn Sanitary Tubing exhibits excellent corrosion resistance to oxidizing environments, various acids, alkali, salt solution, seawater, crevice, stress, and overall general corrosion. AL6XN Compression Tubes & AL6XN high pressure tubing are mainly used in pharmaceutical, marine, oil and gas, food, and chemical processing equipment. The high strength and corrosion resistance of the Stainless Steel Grade Al6xn tubing make it a better choice than the conventional duplex stainless steel tube and a cost effective alternative to more expensive nickel-base alloys where excellent formability, weldability, strength and corrosion resistance are essential. AL-6XN is a registered trademark of ATI Properties, Inc.

    bing / Welded Caplillary Tubing And Aerospace Pipe Specification And Dimension Rranges


    AL6XN Tubing StandardsASTM B676/ SB-676 material, SB-676 N08367, SB-676 UNS N08367, ASTM B675 pipe, ASTM A312 UNS N08367
    AL6XN Seamless Pipe Size3.35 mm OD To 101.6 mm OD
    AL6XN Welded Pipe Size6.35 mm OD To 152 mm OD
    Swg & Bwg10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
    AL6XN tubing wall thickness0.020" –0.220", (special wall thicknesses available)
    AL-6XN Alloy Tubing LengthSingle Random, Double Random, Standard & Cut length
    AL6XN Alloy Pipe FinishPolished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
    AL6XN Tubing FormRound, Coil, Square, Rectangular, Boiler, Hydraulic, Straight or ‘U’ bent Tubes, Hollow, LSAW Tubes Etc.
    AL6XN Tubing TypeSeamless, ERW, EFW, Welded, Fabricated
    EndPlain End, Beveled End, Treaded
    MarkingAll AL6XN Alloy tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
    SB-676 material ApplicationOil Tube, Gas Tube, Fluid Tube, Boiler and Heatexchanger
    Value Added ServiceDraw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc.
    Specialize inAL6XN Capillary Tubing & Other Odd Size
    AL6XN Heat Exchanger & Condenser Tubing
    Test CertificateManufacturer Test Certificate
    Laboratory Test Certificate from Govt. Approved Lab.
    Under Third Party Inspection
    Special Features of AL6XN Stainless Steel TubingAL6XN Gas Tube are high strength and toughness
    AL6XN Exhaust Tubing is 50% stronger than stainless steel
    ASME coverage up to 800° F
    AL6XN welded Tubing can be welded easily
    Excellent resistance to pitting and crevice corrosion in chloride solutions
    Practical immunity to stress corrosion cracking in NaCl environments
    We can also cut, thread, and groove AL6XN Tubes to meet your specifications

    Other Stainless steel Tubing Dimension ranges :


    Product NameExecutive StandardDimensionSteel Code / Steel Grade
    Industrial PipesASTM A312, A358, A778, JIS G3459OD: 1/4"~40"TP304, TP304L, TP316L, SUS304TP
    WT: SCH5S~SCH80S
    Tubes for Boiler and Heat-Exchanger, General Service TubingASTM A249, A269, JIS G3463OD: 15.9~139.8mmTP304, TP304L, TP316L, SUS304TB
    WT: 1.6~5.0mm
    Mechanical and Structural TubesASTM A554, JIS G3446OD: 7.9~152.4mmMT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD SUS304
    WT: 0.5~6.5mm
    Square TubesASTM A554OD: 12.7x12.7~150x150mmMT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD
    WT: 0.7~6.5mm
    Rectangular TubesASTM A554OD: 10x20~100x200mmMT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD
    WT: 0.7~6.5mm
    Sanitary TubingASTM A270OD: 25.4~165.2mmTP304, TP304L, TP316L, SUS304TBS
    JIS G3447WT: 0.8~3.05mm
    Large Gauge Pipes for Ordinary PipingJIS G3448OD: 15.88~318.5mmSUS304TPD
    WT: 0.8~3.0mm
    Large Diameter PipesJIS G3468OD: 14"~40"SUS304TPY
    WT: SCH5S~SCH40S

    UNS N08367 AL6XN BA Super Austenitic Stainless Steel Welded Pipe / Seamless Capillary Tubing Technical datasheet

    Types of AL6XN Seamless & Welded Tubes

    AL-6XN Alloy Seamless TubingNickel Alloy AL6XN Round Tubing
    AL-6XN Alloy Welded PipeAL-6XN Alloy Seamless Pipe
    AL-6XN Alloy Coiled TubingAL6XN Alloy Capillary Tubing
    Stainless Steel Al6xn Aerospace TubingAL6XN High Pressure Pipe
    AL6XN Sighting PipeStainless Steel Al6xn Polish Tubing
    AL6XN Elliptical and Oval TubesAL6XN Rectangular Pipe
    Stainless Steel Al6xn Condenser TubingAL6XN Aero engine Tubing
    AL-6XN Alloy straight pipe boilerN08367 Stainless Steel Tubing

    AL6XN tubing composition & technical information

    SSC-6MO / AL6XN Tube, Pipe & Tubing Equivalent Grades

    STANDARDWERKSTOFF NR.UNS
    SSC-6MO / AL6XN-N08367

    SSC-6MO / AL6XN Tube, Pipe & Tubing Chemical Composition

    GradeCMnPSSiNiCrFeNCuMo
    SSC-6MO / AL6XN.03 max2.0 max.04 max.03 max1.0 max23.5 - 25.520.0 -22.0Bal.18 - .25.75 max6.0 - 7.0

    Mechanical Properties of AL6XN® ( UNS N08367) Super-Austenitic Stainless Steel Tube, Pipe & Tubing

    Representative Tensile and Impact Properties, Tube, Pipe & Tubing

    Temp. °F (°C)

    Ult. Tensile Strength, psi

    .2% Yield Strength, psi

    Elongation in 2”, percent

    Charpy V-Notch Toughness, ft-lb

    -450 (-268)218,000142,00036353*
    -320 (-196)196,000107,0004985
    -200 (-129)---100
    70 (21)108,00053,00047140
    200 (93)99,90049,40047-
    400 (204)903,00040,40046-
    600 (316)86,00036,30047-
    800 (427)87,00036,00048-

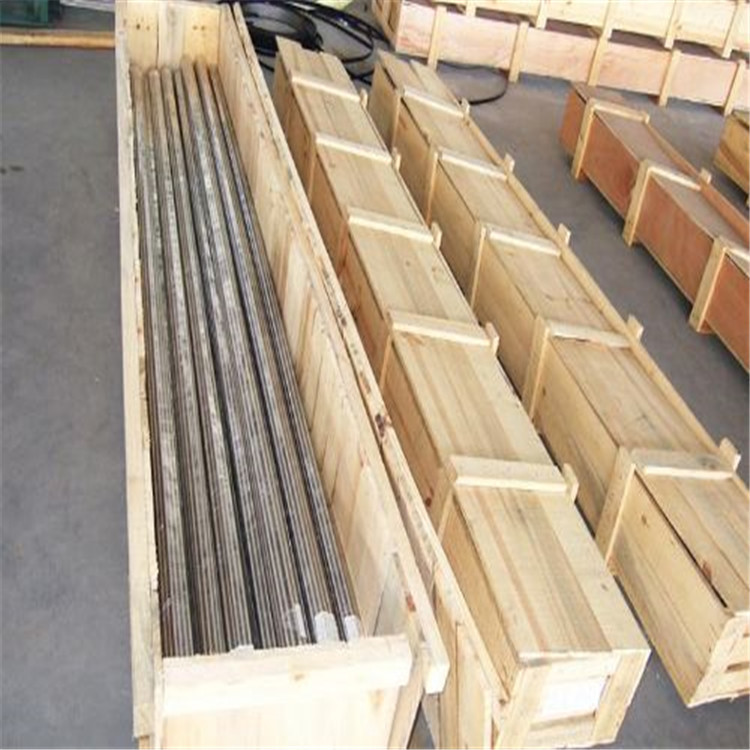

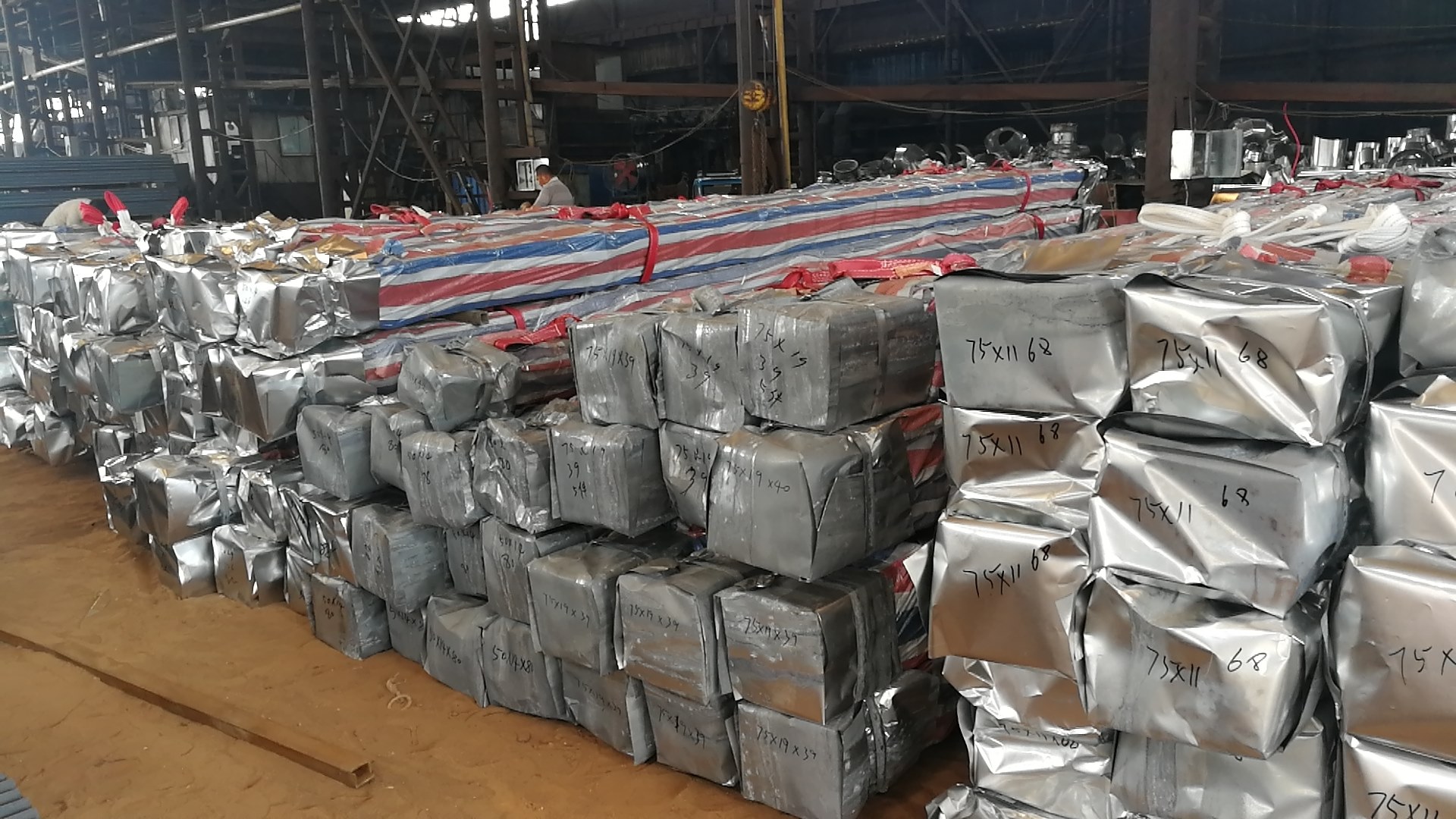

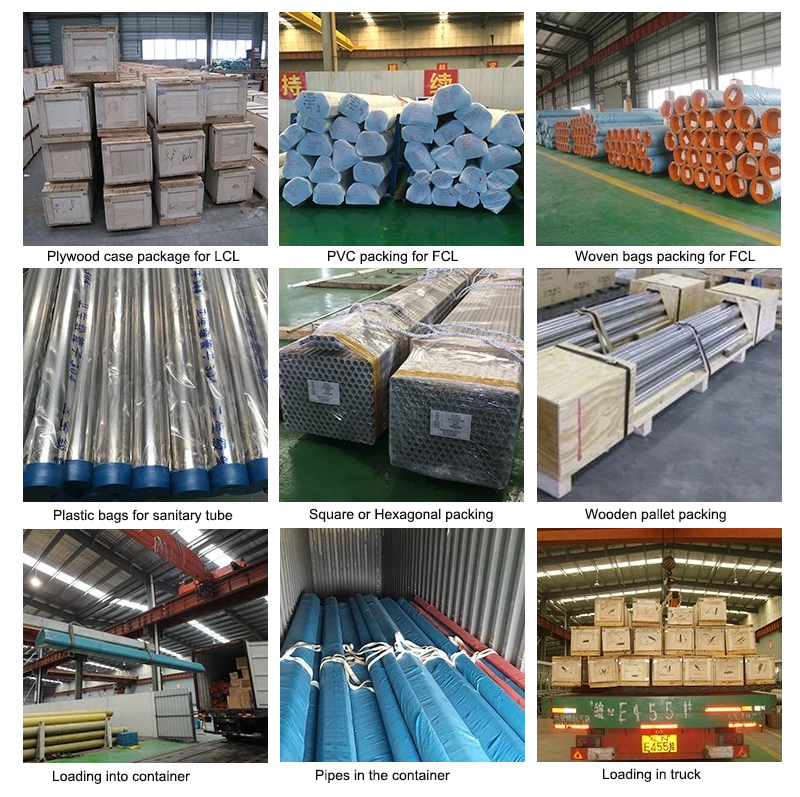

    ASTM B729 UNS N08020, Incoloy Nickel Alloy 20 Seamless Tubing / Welded Caplillary Tubing And Aerospace Pipe Package



    FAQ


    Q: Would you provide samples For free?

    A: Yes . with on stock specification We provide samples For Free . Freight charge collect

    Q: What information should i provide to source for the right products ?
    A: Material grade, width, thickness, coating and Purchase quantity , Expected lead time ,etc

    Q: What are the shipping ports?
    A: Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.

    Q: About product prices?
    A: Prices vary from period to period due to cyclical changes in the price of raw materials.


    Q: How long does your delivery time take?
    A: In general, our delivery time is within 5-45 days, and may be delayed if the demand is extremely large or special circumstances occur.

    Q: Can I visit your location?
    A: Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.

    Q: Does the product have quality inspection before loading?
    A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.

    Q: How to pack the products?
    A: The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.

    Q: What is your working time?
    A: In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next working day.
