High Quality. High Performance. Competitive Price.
5 Years
| Ask Lasest Price | |
| Brand Name : | Z |
| Model Number : | 904L sheet / plates |
| Certification : | ISO, EN, MTC |
| Price : | 1000-3000 Usd / Mt |
| Payment Terms : | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 4000 MT PER week |
| Delivery Time : | 5-25 Days |
Grade 904L Stainless Steel Sheet is non-magnetic, and offers excellent formability, toughness and weldability. Great width selection in Stainless Steel 904L Sheet, coils, strips and sheets. Alloy 904L Plate have excellent dimensional accuracy. These Stainless Steel 904L Coil, SS 904L Clad Plate & 904L Shim available in a wide variety of special surfaces. These SS UNS N08904 Flat Sheet are also durable in environments where other materials fail and available for use in a wide variety of applications.
B625 UNS N08904 cold rolled coil, strip and sheet products are put to work across all industries and markets. Heat- and corrosion-resistant, lightweight yet strong, durable and fully recyclable, ASTM B625 UNS N08904 coil, strip and sheet is exceptionally versatile. SS904L Rolling Sheets is designated as UNS N08904 and Werkstoff Number 1.4539 & other trade name are Grade 904L / X1NiCrMoCu25-20-5 / Z2CNDU25.20 / F904L / 904S13 / SS 2562 & NACE MR01-75 / ISO 15156 (Brands - URANUS B6™ / VLX904™ / AL-904L™ / CRONIFER 1925™ / 2RK65™) stainless steel.

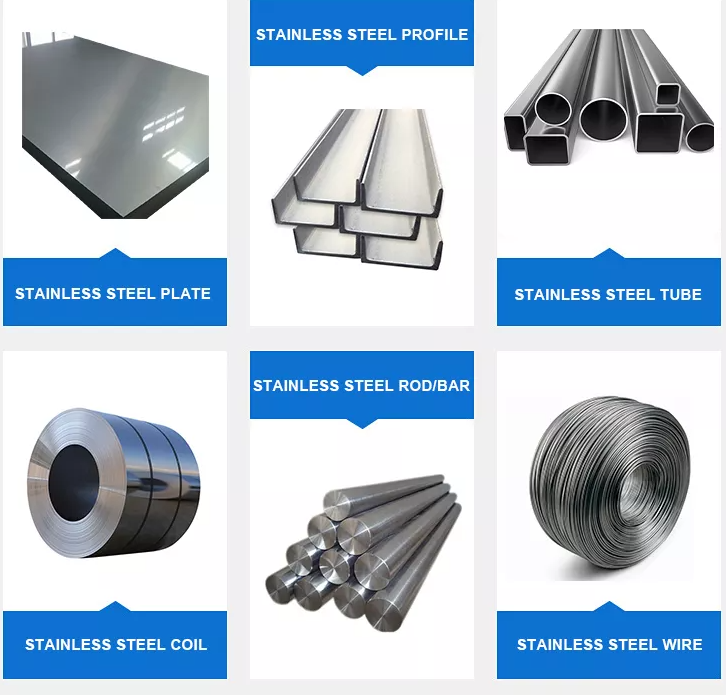

Produc Forms : Sheet, plate , Coil , Strip .wire , Pipe, Tube ,Bar , Profile, Round, Flat, Square, Hexagonal
Specififcation We follow For :
| Material | Form | Specification |
| 904L Stainless Steel Plate | Hot Rolled | ASTM A240 904L ASME SA240 904L |
| 904L Stainless Steel Plate | Cold Rolled | ASTM B625 UNS N08904 ASME SB625 UNS N08904 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5 | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
| Stainless Steel 904L Sheet ASTM Specification | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
| 904L Stainless Steel Plate Specification | MSRR, AMS, BS, ASTM B625 / ASME SB625 |
| Stainless Steel 904L Plate Length & Sizes | 1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2m, 2.44m, 3m, 36" X 120" or 48" X 144", Cut to size available |
| Stainless Steel 904L Plate Thickness | 0.1mm to 100 mm Thk |
| Stainless Steel 904L Plate Width | 10-2500mm |
| Stainless Steel 904L Sheet AMS | AMS |
| Stainless Steel 904L Sheet Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Temper | Annealed |
| Condition | Polished on both sides |
| Stainless Steel 904L Plate Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Stainless Steel 904L Plate Stock in form of | 904L Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Stainless Steel 904L Plate ASTM Standard | ASTM A162, GB/T2054, DIN177502002, ASTM B127, ASTM B435, ASTM B582, ASTM B575, ASTM B168, ASTM B443, ASTM B463, ASTM B626, ASTM B536, etc |
| High Quality Stainless Steel 904L Sheet | Huge Stock, Timely delivery |
| Mill Certificate | |
| EN 10204/3.1B | |
| High special strength, high melt point | |
| Third Party Inspection Report, etc | |
| Excellent corrosive resistance, good thermal resistance | |
| Customer support after-sales service | |
| Strict Control from Raw Material to Finished Stainless Steel 904L Plate |
Width: 600mm~2030 mm
Thickness: 2~120.0 mm
Length: 300~6000 mm , Max 18000 mm
Surface Finish: No.1, 2B, BA, No.3, No.4, No.5, No.8, HL, Etching, SB, Ti-coating,color-coating ,embossing .
Some of the major applications of grade 904L stainless steels include:
The following sections describe the properties of flat rolled products in ASTM B625. The specifications may not be identical for other products such as bar, tube and pipe.
The table below provides the compositional ranges of grade 904L stainless steels:
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu | |
| 904L | min. max. | - 0.02 | - 2 | - 1 | - 0.045 | - 0.035 | 19 23 | 4 5 | 23 28 | 1 2 |
The typical mechanical properties of grade 904L stainless steels are given in the table below:
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) | Brinell (HB) | ||||
| 904L | 490 | 220 | 36 | 70-90 typical | 150 |
The physical properties of grade 904L stainless steels are tabulated below:
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Elec Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | At 20°C | At 500°C | |||||
| 904L | 7900 | 190 | 15 | - | - | 11.5 | - | 500 | 952 |
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 904L | N08904 | 904S13 | - | 1.4539 | X1NiCrMoCuN25-20-5 | 2562 | - |
Q: Would you provide samples For free?
A: Yes . with on stock specification We provide samples For Free . Freight charge collect
|
|
